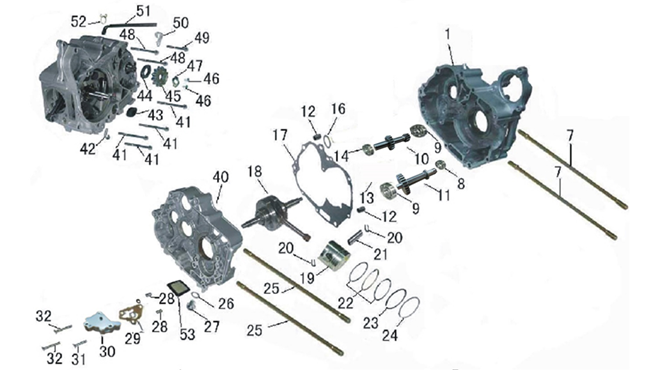

Engine Z110

#Ref Part Price Qty

1 1 1010023-007-0000 Left crankcase combination $14.23

7 7 1150002-005-0001 Cylinder bolt A $0.22

8 8 GB/T 276-1994 Bearing 6001 $0.44

9 9 GB/T 276-1994 Bearing 6203 $0.75

10 10 1072000-005-0000 Countershaft combination $2.33

11 11 1071000-005-0000 Spindle combination $1.86

12 12 1150036-005-0006 Positioning pin $0.04

14 14 GB/T 276-1994 Bearing 6201 $0.52

16 16 1094012-005-0000 Starting shaft washer $0.21

17 17 1010001-006-0002 Crankcase gasket $0.26

18 18 1031000-005-0000 Crankshaft connecting rod assembly $14.62

19 19 1030001-007-0000 Piston $1.97

20 20 1030003-005-0001 Piston pin retaining ring $0.01

21 21 1030002-005-0000 Piston pin $0.25

22 22 1030006-005-0000 Oil ring combination $1.29

23 23 1030005-005-0000 Piston ring 2 $0.65

24 24 1030004-005-0000 Piston ring 1 $0.65

25 25 1150001-005-0000 Cylinder bolt B $0.21

26 26 1150034-005-0000 Al washer $0.05

27 27 1150003-005-0000 Oil drain bolt $0.13

28 28 1150036-005-0004 Positioning pin $0.03

29 29 1050004-006-0000 Oil pump gasket $0.03

30 30 1051000-006-0000 oil pump parts $0.85

31 31 GB/T 818-2000 Cross recessed pan head screws M6 $0.06

32 32 GB/T 818-2000 Cross recessed pan head screws M6 $0.05

40 40 1010033-007-0000 Right crankcase combination $9.57

41 41 Q/HSQ 5787-2003 Bolt M6 $0.13

42 42 1010009-005-0002 Overflow pipe clamp $0.08

43 43 1080024-005-0000 Gearshift shaft oil seal TC 11.6 24 10 $0.00

44 44 1070036-005-0000 Countershaft oil seal TC 17 29 5 $0.16

45 45 1070031-005-0006 Drive sprocket $0.52

46 46 1070032-005-0000 Drive sprocket pressure plate $0.06

47 47 GB/T 5783-2000 Hex Bolt M6 x 10 $0.03

48 48 Q/HSQ 5787-2003 Bolt M6 x 60 $0.13

49 49 Q/HSQ 5787-2003 Bolt M6 x 50 $0.12

50 50 1010027-005-0001 Snorkel clamp $0.06

51 51 1010028-005-0002 Snorkel $0.23

52 52 1010027-005-0000 Snorkel clamp $0.04

53 53 1010014-005-0000 Oil filter combination $0.06

Choose Desired Part#: 1|1010023-007-0000|Left crankcase combination
Price:
Sale price$14.23
