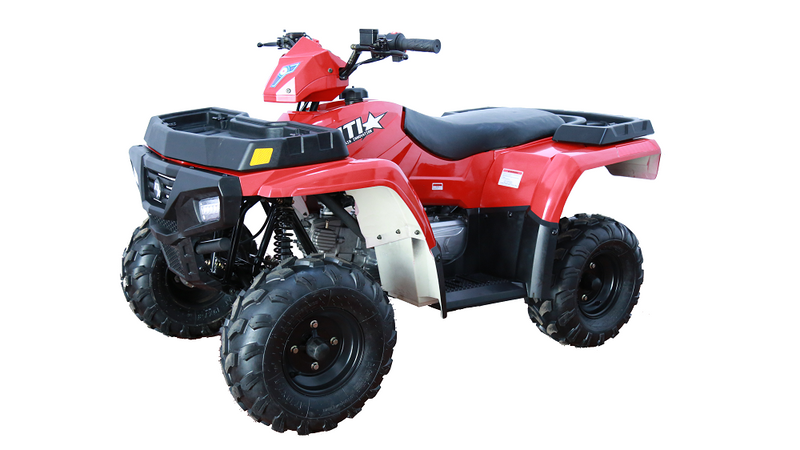

Angler EFI 120

Engine Type

Single cylinder ,4 stroke, air-cooled & oilcooled

Bore stroke

2.07" X 2.04"

Displacement

120cc

Compression Ratio

9.5:1

Engine Output Wattage

110 Watts

MAX POWER OUT

6.2Kw / 7000rpm

Max Torque

7.2N.m / 5500rpm

Transmission

CVT, Automatic CVT

W./Reverse Gear

Yes, with gear sets of Forward, Neutral,Reverse

Lubrication Mode

Wet trough lubrication

Oil Capacity

30.43 Oz

Max Speed

35mph+ (Depending on Riders Weight and Road  Conditions)

Fuel Delivery System

Electronic fuel injection (EFI)

Ignition

AC-CDI

Ignition Timing

32°±2°@5000RPM

Spark plug gap

0.6-0.7mm

Starting System

Electric

Drive Train

2WD

Chain pitch

13mm

Battery

12V, 5Ah

Suspension / Front

Traverse Double-arm

Shock / Front

Overall Len. 280mm, outer diameter 53mm, spring diameter 6mm, spring len. 170mm

Suspension / Rear

Flat Fork Dependent

Shock / Rear

Overall Len.325mm, outer diameter 61mm, spring diameter 8mm, spring len. 220mm

Brakes / Front

Reinforced Drum brake

Brakes / Rear

Disc brake

Tires / Front

AT19X7-8 13N, off-road tire

Rim / Front

AT8x5.5 ET=-10, Steel Rim

Tyre / Rear

AT18X9.5-8 13N, off-road tire

Rim / Rear

AT8x5.5 ET=-10, Steel Rim

FRAME

Steel Frame elegant PEARL BLACK COLOR

ATV dimensions L x W x H

62"(L) x 40"(W) x 39"(H)

Carton dimensions L x W x H

63.8"(L)x38.2"(W)x32.4"(H)

Suggested Rider Weight

178.6 lbs

Net Weight

291 lbs

Gross Weight

295 lbs (If filled with 1L Oil + 0.6L Gear Oil +Brake Oil)

Payload of rack (F and R)

F 15 lbs, R 30 lbs

Seat Height

29"

Wheelbase

42"

Front Wheel tracy

34"

Rear Wheel Tracy

30"

Front Wheel camber

-1°

Min. Ground Clearance

4"

Fuel Capacity

7.8L (2 Gallons)

Engine Kill Switch

Yes, also together with pull wire emergency shutdown

Indicator Light

Neutral, Reverse, Fuel Level, Engine Check

Speed Limiter

Yes, connection speed limit, disconnection release speed limit

Horn

Yes

Remote Control

Yes, emergency shut off (Pull Wire)

Headlight

Yes, LED

Tail Light

Yes, LED, Keeps lighting when power lock on

CARB Approved

No

EPA Approved

Yes
